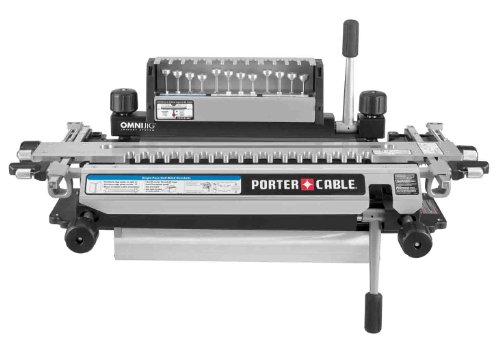

Porter Cable 55160 16-Inch Omnijig Joinery System

Porter Cable 55160 16-Inch Omnijig Joinery System

The single-lever clamping mechanism lets you hold the board in position with one hand while clamping it with the other.

Machined, textured top and front surfaces work with the clamping mechanism to hold boards in position during operation.

A New Addition to the Omnijig Product Family Porter-Cable does it again -- expanding its industry-leading lineup of top-selling Omnijigs with this dovetail jig joinery system. Almost any project that requires the joining of two boards is a candidate for the sturdy, visually appealing dovetail joint; and the Omnijig is just the powerful machine to create it. The consistent and quick dovetail is a great alternative to the more labor-intensive manual methods of joining; and now it's easier than ever.

Is the Omnijig Dovetail Jig Joinery System Right for You? This 16-inch capacity model has a fixed-finger template that will let you quickly cut half-blind joints with a single pass of your router, and it also makes sliding-tapered dovetails. Great for beginners and seasoned professionals alike, the 55160 is designed to be easy-to-use and exceptionally versatile. Construct drawers, cabinets, and custom furniture -- or use this tool in a craftier capacity for chests, jewelry boxes, benches, and book shelves.

Key Features and Product Highlights at a Glance Ready to work right out of the box, the 55160 comes pre-assembled and set by the factory for minimal user hassle. And don't let the high-end functionality fool you -- this machine boasts color-coded, on-board instructions that provide tips, suggestions, and clear guidance that's easy to follow.

Pre-set router bit depth gauges eliminate the need to take measurements.

'Set & Forget' template stops and bit depth gauges allow fast and repeatable set-up.

Fixed-finger template cuts half-blind joints and sliding-tapered dovetails.

Color-coded, on-board instructions provide clear user guidance as well as usage tips.

• Template Positioning Stops The convenient 'Set and Forget' template positioning stops ensure that the various templates are located correctly on the jig, minimizing user error and saving time for future projects. These stops come pre-set by the manufacturer, but they can be easily adjusted to meet your specific needs. With just a few simple adjustments, you can set the stops to match any project on your workbench.

• Router Bit Depth Gauges The Omnijig's preset router bit depth gauges eliminate the need to take measurements before getting started on your project. These preset depth gauges place the bit to the correct depth quickly and accurately, for a wide variety of applications and board thicknesses. Just like the stops, these depth gauges can be easily adjusted to meet your particular needs -- and they'll provide the same consistent joint fit time and time again.

• Stabilizer Bar The integrated stabilizer bar helps protect the template and router bit from damage by keeping the router from tipping while in operation; and it deflects chips downward for a cleaner work environment. This feature doesn't just secure the machine, it keeps your work area tidy for better visibility while you're on the job.

• Textured Surfaces The Omnijig's machined, textured top and front surfaces work together with the clamping mechanism to make sure that the boards are held firmly in position during operation. They grip without marring, and offer true stability while you work -- so you'll never need to worry about losing control of a project, no matter how vigorous the task.

• Single Clamp Lever With some joiner systems, you feel like you need a third hand to work all the knobs and levers at once -- but not with the Omnijig. The Omnijig's single-lever clamping mechanism lets you hold the board in position with one hand while clamping it with the other, so there's no need to juggle boards and tools.

The Omnijig is designed for use by professionals and hobbyists alike.

What's in the Box The 55160 includes jig base, 16-inch single-pass half-blind/sliding-tapered dovetail template, instructional DVD featuring Norm Abram, left and right template stops - C2, dovetail bit - D4; four template guides - G2, G3, G4 and G5; lock nut, stabilizer bar, router bit depth pod, square screwdriver, wrench, and two o-rings.

Porter-Cable's Commitment to Excellence Manufacturing a full line of power tools, equipment and accessories, Porter-Cable makes a product for every situation. Whether you're a seasoned professional or a casual weekender, you can always find a Porter-Cable tool that's right for the job. From new home construction to building maintenance, and from farms to upscale woodworking -- Porter-Cable provides true power and rugged performance for any occasion.
